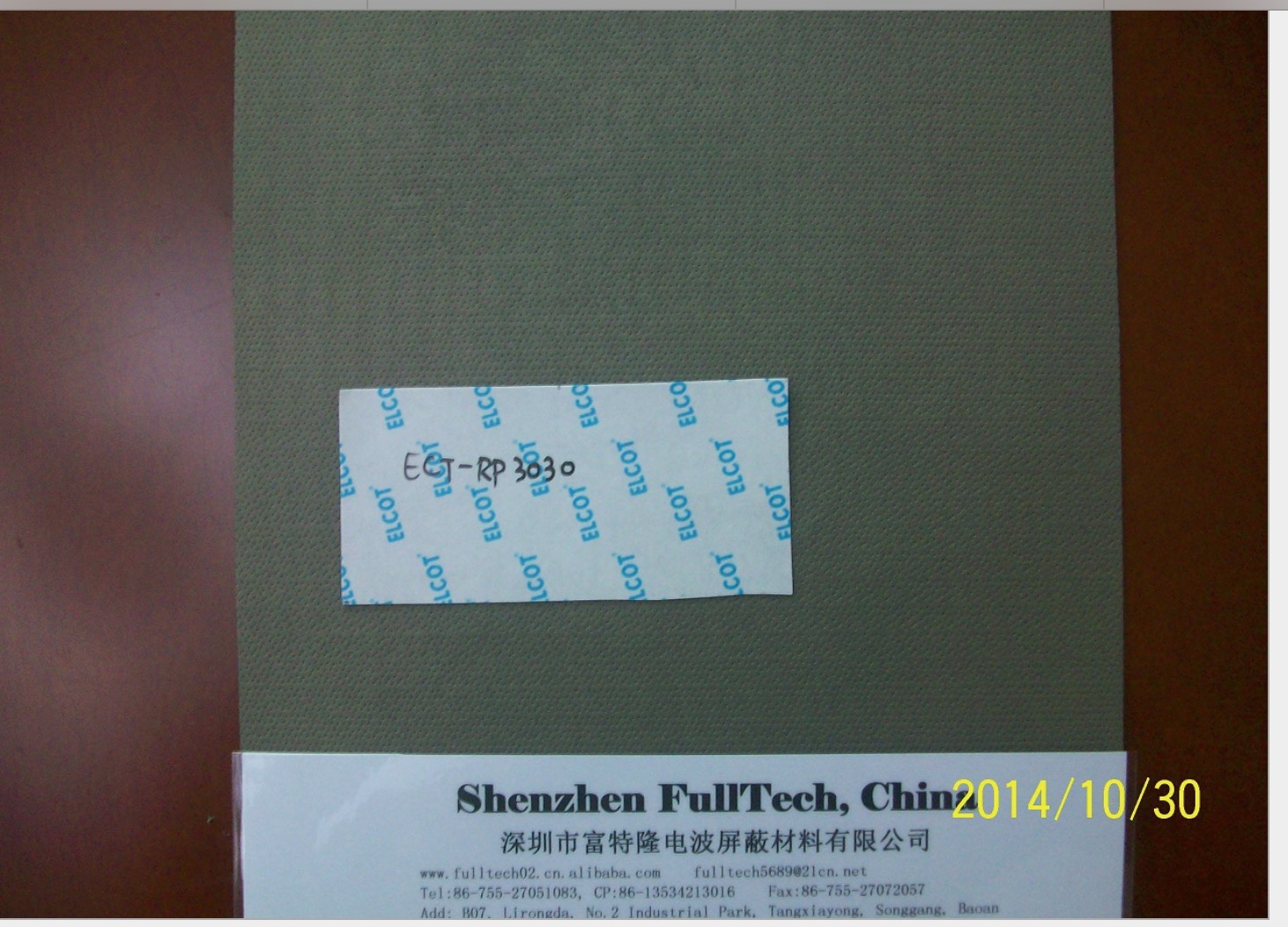

在電鍍前將PU泡棉均勻打孔，然后整體電鍍，這樣不僅表面導電，而且上下整體都導通，具有了全方位的導電性。不同于導電橡膠襯墊鍍銀圖層，此為普通Ni+Cu+Ni電鍍，良好的密封性能可以替代部分高成本導電橡膠。

ECT-RP3000系列具有非常好的彈性，壓縮比近70%，非常好的高溫壓縮回彈性（75℃,22Hr）,超薄厚度0.10mm還可以保持可壓縮性和良好的彈性，適合高精度的屏蔽裝配間隙，尺寸性能穩定，所以經金屬化處理后用途廣泛，用于尺寸公差小(+/-0.05mm)，適用高精密間隙配合，沒有一般的導電泡棉存在的導電粒子凸起問題，適用于PDA, LCD,手機，數字電視，筆記本電腦等，目前已經成功應用于三星系列高端手機如Samsung Note4。

厚度系列：0.10,0.15,0.20,0.25,0.35,0.40mm,

It is polyolefin foam punched holes on the surface for vertical resistance. Existed conductive cushion materials are silver pasted product, but this product is electroless plated with Ni+Cu+Ni to have conductivity on it, its high performance of seal airtight performance make it possible to replace some of high cost conductive elastomer.

The ECT-RP3000 Series PU Foam have very good compression set, and near 70% compression rate, enhanced Restorative property after heat compression（75℃,22Hr）and conductivity in X, Y, and Z axis, Prevented particle issue and great shielding and grounding performance. Now it is using in name brand cell phone in the world such as Samsung。

The supper thin Thickness 0.10mm but keep good compression and suitable for high precision gap shielding for PDA, LCD, Cell Phone, Digital TV, Notebook etc. and now is using for Samsung Note 4.

Thickness: 0.10,0.15,0.20,0.25,0.35,0.40mm,
